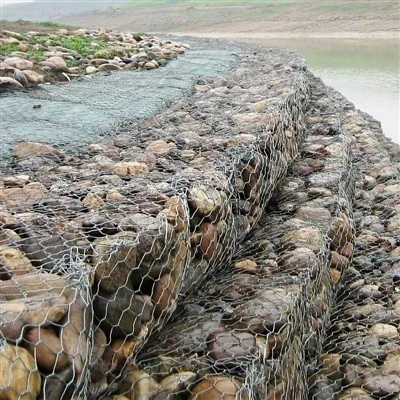

Hexagonal Wire Gabion Basket is a double-twisted hexagonal wire mesh container designed for civil engineering and erosion control applications. Filled with stones on-site, it forms flexible, permeable, and durable structures for retaining walls, river protection, flood control, channel lining, and slope stabilization projects.

Technical Specifications

Item	Specification
Product Name	Hexagonal Wire Gabion Basket
Structure	Double-Twisted Hexagonal Wire Mesh
Material	Low Carbon Steel Wire
Mesh Opening	80 × 100 mm, 100 × 120 mm
Mesh Wire Diameter	2.7 mm
Selvedge Wire Diameter	3.4 mm
Tie Wire Diameter	2.2 mm
Zinc Coating	Mesh Wire ≥260 g/m²; Selvedge Wire ≥275 g/m²; Tie Wire ≥240 g/m²
Surface Treatment	Heavy Galvanized, Galfan, PVC Coated (Optional)
Filling Material	Natural Stone / Quarry Stone
Structure Type	Flexible Permeable Gravity Structure
Customization	Size, Wire Diameter, Mesh Opening, Coating System

Wire Specifications

Gabion Basket

Item	Specification
Mesh Opening	80 × 100 mm / 100 × 120 mm
Mesh Wire Diameter	2.7 mm
Selvedge Wire Diameter	3.4 mm
Tie Wire Diameter	2.2 mm
Mesh Wire Zinc Coating	≥260 g/m²
Selvedge Wire Zinc Coating	≥275 g/m²
Tie Wire Zinc Coating	≥240 g/m²

Reno Mattress Comparison

Item	Specification
Mesh Opening	60 × 80 mm
Mesh Wire Diameter	2.2 mm
Selvedge Wire Diameter	2.7 mm
Tie Wire Diameter	2.2 mm
Mesh Wire Zinc Coating	≥240 g/m²
Selvedge Wire Zinc Coating	≥260 g/m²
Tie Wire Zinc Coating	≥240 g/m²

Key Features

Strong and Flexible Structure
The double-twisted hexagonal mesh provides high tensile strength and flexibility, allowing the structure to adapt to ground movement without cracking.

Excellent Permeability
The open stone-filled structure allows water drainage, reducing hydrostatic pressure and improving long-term stability.

Durable Corrosion Protection
Heavy galvanized, Galfan, and PVC-coated wire options provide reliable corrosion resistance for outdoor and hydraulic environments.

Gabion Basket vs Reno Mattress

Product Type	Main Feature	Typical Application
Gabion Basket	Higher box structure (>0.5 m height)	Retaining walls, flood control, slope protection
Reno Mattress	Low-profile structure (0.17–0.30 m height)	Riverbed protection, channel lining, erosion control

Quality Assurance

Gabion baskets are manufactured under standardized quality control procedures to ensure consistent mechanical performance and corrosion resistance.
Steel wire raw materials are inspected before production.
Wire diameter and mesh opening are checked during manufacturing.
Zinc coating thickness is tested according to specification requirements.
Mesh structure and basket dimensions are inspected before shipment.
Finished products undergo appearance and workmanship inspection.
Third-party inspection is available upon request.

Packaging & Delivery

Folded and bundled for efficient transportation.
Packed with steel straps to maintain product shape.
Wooden pallets available according to customer requirements.

Suitable for container shipment.
OEM packaging supported.
Lead time depends on order quantity and specifications.

Customizable Size

product-456-413

Application

FAQ

Q: What is a Hexagonal Wire Gabion Basket?

A: A Hexagonal Wire Gabion Basket is a stone-filled container made from double-twisted hexagonal wire mesh, commonly used for retaining walls, erosion control, and hydraulic protection.

Q: What is the difference between gabion baskets and gabion mattresses?

A: Gabion baskets are taller box-shaped structures mainly used for retaining and support applications, while gabion mattresses are low-height structures mainly used for surface protection.

Q: What materials are used for gabion baskets?

A: Gabion baskets are commonly made from galvanized steel wire, Galfan-coated wire, or PVC-coated steel wire.

Q: Why use double-twisted hexagonal mesh?

A: The double-twisted structure improves flexibility and prevents local damage from causing the entire mesh structure to fail.

Q: What stone size should be used for filling?

A: Stone size depends on mesh opening and project requirements. The filling stone should generally be larger than the mesh opening.

Q: Can gabion basket sizes be customized?

A: Yes. Length, width, height, mesh opening, wire diameter, and coating specifications can be customized.

Q: Are gabion baskets suitable for flood control?

A: Yes. They are widely used for flood banks, river training structures, and erosion prevention projects.

Q: How long can galvanized gabion baskets last?

A: Service life depends on coating type, environment, and installation conditions. Heavy galvanized and Galfan coatings provide long-term corrosion protection.

Q: Do gabion baskets require concrete foundations?

A: In many applications, gabion baskets can be installed without complex concrete foundations. Actual requirements depend on soil conditions and engineering design.

Q: What information is required for a gabion basket quotation?

A: Please provide basket dimensions, mesh opening, wire specification, coating requirement, quantity, and project application.
